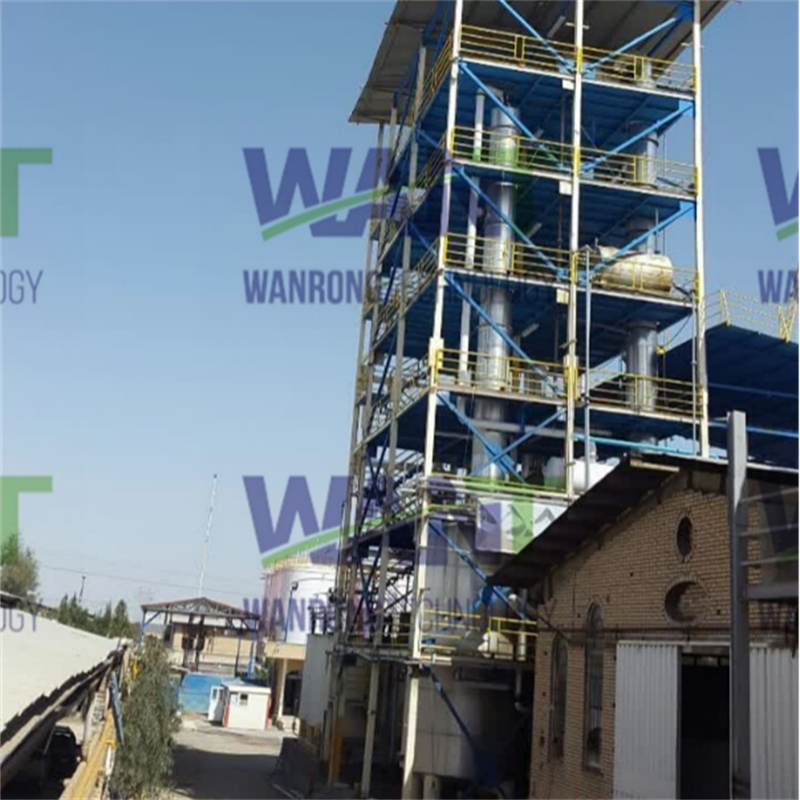

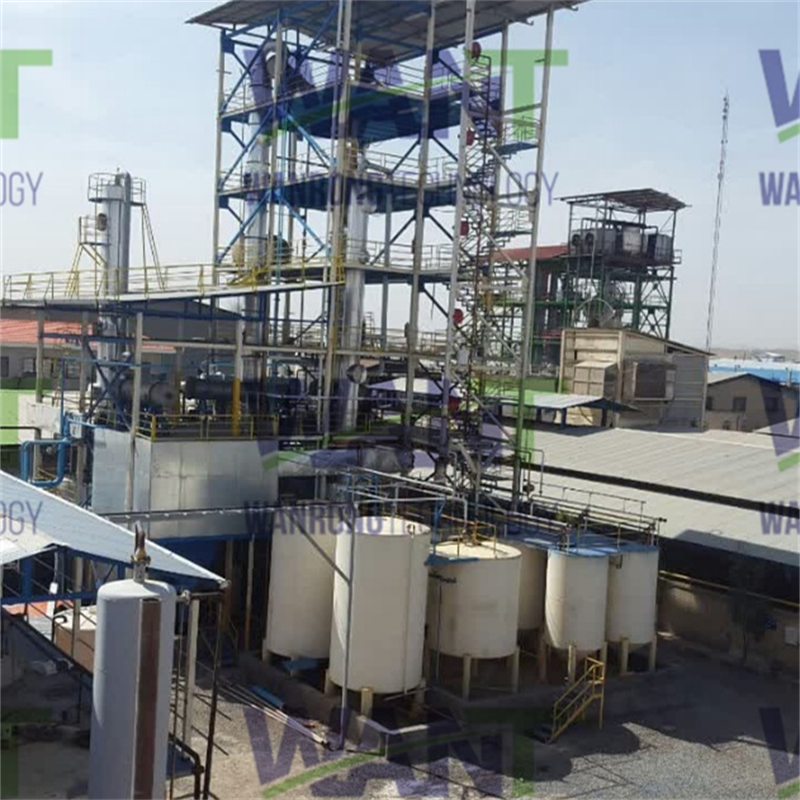

Naphtha/condensate Aromatization produce high octane number gasoline equipment

Description

Brief Introduction: Production of High-Octane Gasoline from Naphtha/Condensate

Objective: To upgrade low-octane naphtha or condensate feedstocks into high-octane gasoline blending components, primarily through catalytic reforming.

Key Feedstock Characteristics:

Naphtha: A light distillate fraction from crude oil distillation (Atmospheric Distillation Unit - ADU) or other units, typically boiling range ~30°C to 200°C. Low octane (RON 40-70).

Condensate: Very light liquid hydrocarbons separated from natural gas production. Similar boiling range to naphtha but often lighter, leaner (fewer heavy components), and can contain more paraffins/naphthenes. Also low octane.

Core Process: Catalytic Reforming

The heart of high-octane gasoline production from these feedstocks is the Catalytic Reforming Unit (CRU). This process chemically transforms low-octane hydrocarbons into high-octane components.

Typical Process Flow

1. Feed Pretreatment (Essential):

Purpose: Remove contaminants (sulfur, nitrogen, water, metals) that permanently poison the expensive platinum-based reforming catalyst.

Process: Hydrotreating (Hydrodesulfurization - HDS).

Steps:

Feed is mixed with hydrogen-rich gas (recycle gas).

Passed over a catalyst (e.g., CoMo/Al₂O₃) at high temperature (300-400°C) and pressure (20-50 bar).

Sulfur compounds (e.g., mercaptans) are converted to H₂S.

Nitrogen compounds are converted to NH₃.

Olefins are saturated.

Metals are trapped.

Output: Treated naphtha/condensate with very low sulfur (<0.5 ppm, often <0.1 ppm) and nitrogen.

2. Catalytic Reforming:

Purpose: Convert low-octane paraffins and naphthenes into high-octane aromatics and branched paraffins (isoparaffins).

Key Reactions:

Dehydrogenation: Naphthenes -> Aromatics + Hydrogen (Main high-octane source)

Isomerization: Straight-chain paraffins (n-Paraffins) -> Branched-chain paraffins (i-Paraffins)

Dehydrocyclization: Paraffins -> Naphthenes -> Aromatics

Hydrocracking: (Undesired, consumes feed) Large molecules -> Smaller molecules + Gas (C1-C4)

Process Types:

Semi-Regenerative Reforming (SRR): Fixed catalyst beds. Unit shut down periodically (every 6-24 months) for catalyst regeneration. Operates at higher pressure (15-30 bar).

Continuous Catalyst Regeneration Reforming (CCR): Catalyst continuously circulates between reactors and a separate regenerator. Operates at lower pressure (3-10 bar), enabling higher severity (higher octane, higher aromatics yield, more hydrogen). Most common modern design.

Conditions:

Temperature: 480-530°C

Pressure: 3-30 bar (depending on type)

Catalyst: Platinum (Pt) supported on alumina (Al₂O₃), often with promoters like Rhenium (Re), Tin (Sn), or Chlorine (Cl) (bi- or multi-metallic).

Output:

Reformate: High-octane liquid product (RON 95-106). Rich in aromatics (Benzene, Toluene, Xylenes - BTX) and branched paraffins.

Hydrogen-Rich Gas: A valuable by-product (used in hydrotreaters, hydrocrackers).

LPG: Light gases (C1-C4) from hydrocracking.

3. Product Separation:

Purpose: Separate the reformate product from light gases and hydrogen.

Process:

Stabilizer/Debutanizer: Removes light ends (C4 and lighter gases - LPG) from the reformate liquid.

Gas Recovery Unit: Separates hydrogen-rich gas from the light hydrocarbon gases (C1-C4). Hydrogen is purified and recycled to the reformer reactors and hydrotreater.

4. Fractionation (Optional but Common):

Purpose: Split the stabilized reformate into specific boiling range cuts.

Process:

A fractionator separates:

Light Reformate: Lower boiling, high-octane components (often rich in benzene/toluene). May require benzene reduction treatment before gasoline blending due to environmental regulations.

Heavy Reformate: Higher boiling components (rich in xylenes and heavier aromatics).

Key Product:

Reformate: The primary high-octane gasoline blending component (RON 95-106). It significantly boosts the octane number of the final gasoline pool.

Critical Considerations:

Feed Quality: Pretreatment is absolutely critical to protect the sensitive reforming catalyst.

Process Severity: Higher severity (temperature, lower pressure) increases octane and aromatics yield but also increases catalyst deactivation rate and gas (LPG) production (lower liquid yield).

Catalyst: Platinum-based catalysts are essential for the complex reactions; continuous regeneration (CCR) allows optimal performance.

Hydrogen: A major valuable by-product, crucial for other refinery hydroprocessing units.

Benzene Management: Reformate contains benzene. Regulations often require its concentration in final gasoline to be minimized, sometimes necessitating post-reformer treatment (e.g., benzene saturation, extraction) or careful blending.

In Summary: Producing high-octane gasoline from naphtha/condensate hinges on rigorous feed pretreatment (hydrotreating) followed by catalytic reforming, where platinum catalysts under heat and pressure transform molecules into high-octane aromatics and branched paraffins. Separation and fractionation yield reformate, the essential high-octane blending component, alongside valuable hydrogen gas.

Product distribution (specific needs to be tested according to the sample)

Product nature

High-octane petrol

Note: Benzene content of high octane number gasoline & gt;1%(estimate)

Typical liquefied gas properties

Catalyst property

Main properties of catalyst

FAQ

1. Q: What are naphtha and condensate, and why are they used for gasoline?

A: Naphtha is a light distillate fraction from crude oil refining (typically C5-C12 hydrocarbons). Condensate is a very light liquid hydrocarbon mixture (C5-C10+) recovered from natural gas production. Both are excellent feedstocks for gasoline production because they contain the right molecular weight hydrocarbons that can be transformed into high-value gasoline components.

2. Q: Why are naphtha and condensate particularly suitable for making high-octane gasoline?

A: They contain significant amounts of paraffins (n-paraffins & isoparaffins), naphthenes, and aromatics. Through catalytic processes like reforming, naphthenes and paraffins can be converted into high-octane aromatics (like benzene, toluene, xylene - BTX) and branched isoparaffins, which dramatically boost the octane rating.

3. Q: What is the primary process used to convert naphtha/condensate into high-octane gasoline?

A: Catalytic Reforming is the key process. It uses a catalyst (usually platinum-based) under high temperature and moderate pressure to rearrange molecules. Key reactions include dehydrogenation of naphthenes to aromatics, isomerization of paraffins to isoparaffins, and dehydrocyclization of paraffins to aromatics – all significantly increasing octane (RON > 90).

4. Q: Does all naphtha/condensate go straight into the reformer?

A: Usually not. Feedstock is first hydrotreated to remove impurities like sulfur and nitrogen, which poison the expensive reforming catalyst. Specific naphtha cuts (e.g., Heavy Naphtha, ~90-200°C boiling range) are often preferred for reforming due to higher naphthene content yielding more aromatics. Lighter condensate cuts might be routed to isomerization instead.

5. Q: Besides reforming, what other processes might be involved?

A: Isomerization: Converts low-octane straight-chain paraffins (n-pentane, n-hexane) in light naphtha/condensate fractions into higher-octane branched isomers.

Alkylation: Combines light olefins (from FCC, cokers) with isobutane to form very high-octane (RON 90-98) branched paraffins (alkylate), often blended into the gasoline pool.

Blending: Reformate (high-octane, high-aromatics) is blended with isomerate (medium octane, low aromatics), alkylate (very high octane), oxygenates (like ethanol), and potentially treated FCC gasoline to meet final octane (RON/MON) and specification requirements.

6. Q: How exactly does reforming increase the octane number?

A: Reforming transforms low-octane components:

Naphthenes (e.g., cyclohexane): Converted to high-octane aromatics (benzene - RON ~99).

Paraffins: Converted to higher-octane isoparaffins via isomerization, or directly to aromatics via dehydrocyclization (e.g., n-heptane RON 0 -> Toluene RON ~120).

It also produces hydrogen gas, a valuable by-product.

7. Q: What are the main advantages of using naphtha/condensate for high-octane gasoline?

A: Abundant Feedstock: Major component of crude oil and gas production.

High Yield & Quality: Reforming efficiently produces high-octane reformate, the primary high-octane blending component.

Flexibility: Different cuts can be routed to optimal processes (reforming, isomerization).

Valuable Co-Product: Reforming generates hydrogen essential for desulfurization units (hydrotreaters, hydrocrackers).

8. Q: What are the key challenges in producing high-octane gasoline from these feedstocks?

A: Feedstock Quality: Variability in composition (naphthene/paraffin ratio, impurities) requires careful selection and pre-treatment (hydrotreating).

Catalyst Sensitivity: Reforming catalysts are expensive and highly sensitive to poisons (S, N, metals, water).

Aromatics/Benzene Limits: Reformate is high in aromatics and benzene, subject to strict environmental regulations (requiring benzene saturation or extraction).

Process Severity: Higher severity reforming boosts octane but accelerates catalyst deactivation (coking) and reduces liquid yield.

Capital & Operating Costs: Reforming and associated units (hydrotreaters) represent significant investment and operating expenses.
